Spirotrope combines a Stirling engine, a Spirograph, and an Arduino

Witaya Junma decided to combine creations from three different time periods: a Spirograph (1965), Stirling engine (1816), and an Arduino board developed in the 2000s to form a unique art piece.

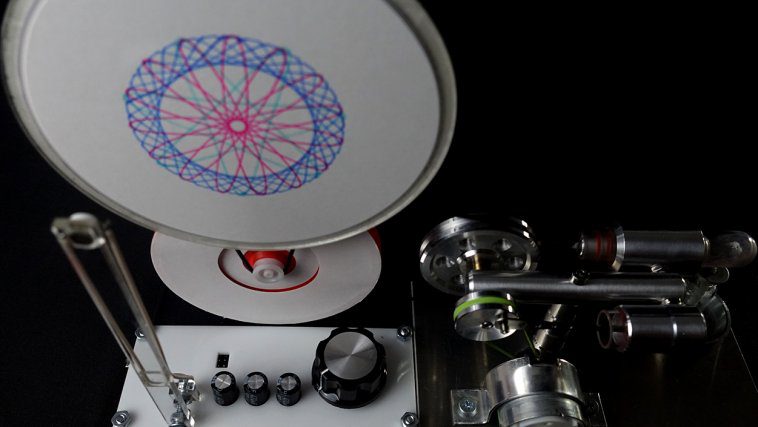

What he came up with is the Spirotrope, which invites users to draw a pattern using a Spirograph, then place it in a special holder that spins it with a Stirling engine. This engine also provides electrical power for the Arduino, allowing it to blink a light on the moving pattern at various rates.

These flashes make the drawings appear to rotate at different speeds, and several patterns can even appear to move independently, forming a unique layered effect.

Hardware used includes a Stirling engine, Arduino, Spirograph, motor 12 DC, LED 3V, B10K, Capacitor 470uf 16v, diode 1N4001, TIP 31 and round belts. Software: Arduino

Stirling engine is a heat engine that operates by expansion of hot air, which is created by an alcohol burner in this work. The engine does two jobs: it turns the wheel by giving power to the belt and generate AC currents by spinning the generators. The currents are then converted to DC by a 1N4001 diode and fed into a set of capacitors, which stabilize the currents before powering up the Arduino board. The board controls the frequency of LEDs, which can be controlled by turning the B10K potentiometer.

- Werbung -

The blinking LED creates the illusion of moving patterns from a rapid succession of static images.

Be sure to check it out in the video below. More project details are available in his write-up and on Creative Applications.
