High school play gets a simulated sports scoreboard

Arduino TeamJanuary 2nd, 2019

Maker “DJ’s Fantasi” is the technical director at his local high school’s theater arts program, and when the director of their winter production of Disney’s High School Musical requested a scoreboard prop, he excitedly set to work.

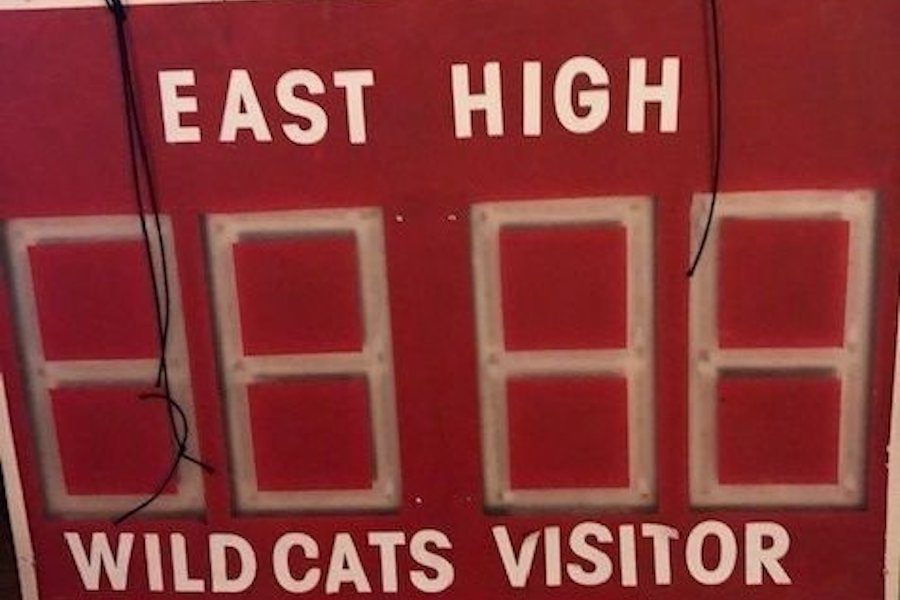

The resulting build consists of four 7-segment displays, lit up by strips of non-programmable LEDs.

Numbers on the device are shown with the help of an Arduino Mega, which takes input via a single-channel remote. Seven I/O pins are used to indicate each segment to be displayed, and another four multiplex the signal into the required four digits.

While a more general input device could be used, this particular scoreboard was especially set up for this musical, sequencing through numbers that correspond to the performance on command.

More details on this impressive project can be found here.
