You may have come across the term “PID control,” and while this proportional-integral-derivative control method does a great job of smoothing out oscillations, where does one get started?
- Werbung -
- Werbung -

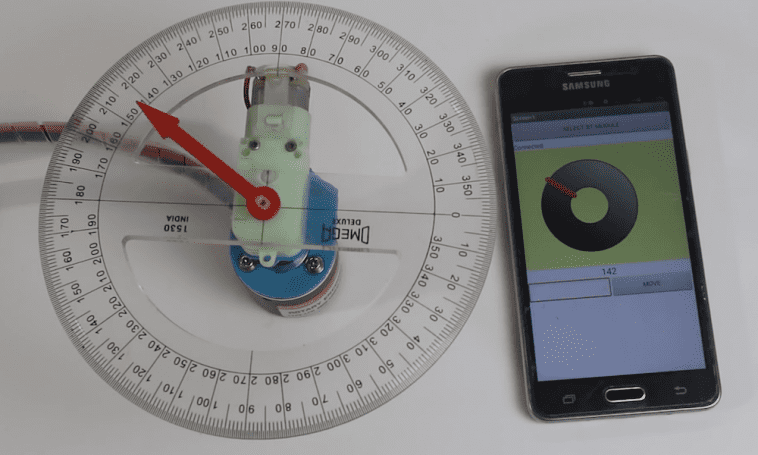

One solution would be Mr Innovative’s demo device, showcased in the video below. In it, a DC gear motor is able to smoothly rotate an arrow overlaid on a protractor by a certain number of degrees.
– Werbung –
Input is via a Bluetooth smartphone interface, and an encoder is used for feedback to the commanding Arduino Uno. Everything is fastened together by 3D-printed parts, and if you’d like to try your own PID experiment, code and print files are linked in the video description.
- Werbung -
[youtube https://www.youtube.com/watch?v=K7FQSS_iAw0?feature=oembed&w=500&h=281]
