Raspberry Pi hardware hacks

Reading Time: 3 minutes

Portable power

One of the easiest ways to take Raspberry Pi portable is to use a mobile phone charging bank. These sticks typically use a USB connection to hold power, and you can plug them into Raspberry Pi just like your phone charger.

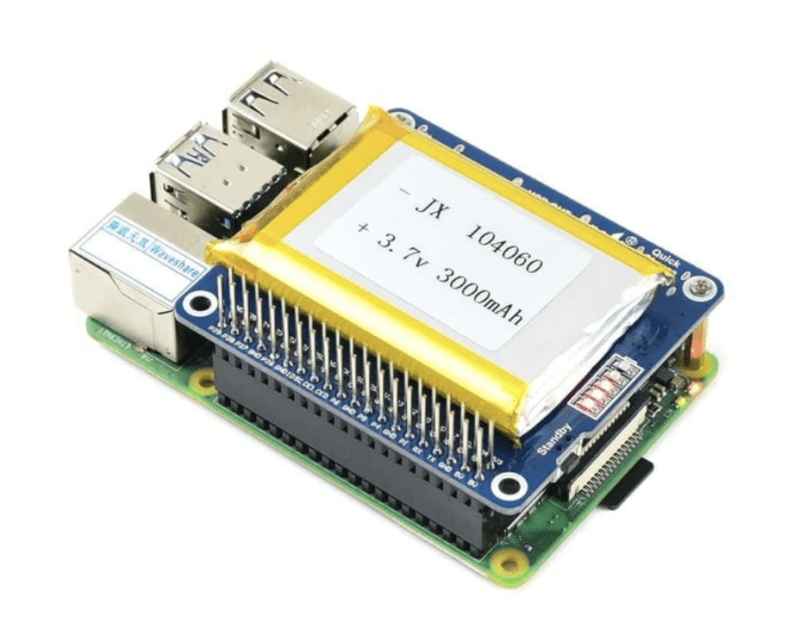

It’s a hack though – if you want a more secure solution, it’s possible to power Raspberry Pi computers using batteries (both alkaline and lithium). Devices such as this LiPo Battery HAT for Raspberry Pi combine a power bank management chip with a Li-polymer battery. Be careful when using lithium-ion batteries to enclose Raspberry Pi and the battery inside a case.

Network install (beta)

Until recently you’ve needed to use another computer to set up Raspberry Pi. Typically using Raspberry Pi Imager.

A recent development at Raspberry Pi is looking to fix this with a Raspberry Pi bootloader that implements network installation. If Raspberry Pi is connected to the internet with an Ethernet cable, it will download Imager from the internet and enable you to flash a microSD card or USB drive.

You’ll need to update the bootloader on Raspberry Pi and the service is currently in Beta. But it’s well worth investigating to see the future of Raspberry Pi OS installation.

Switch to an M.2 drive

The traditional storage for Raspberry Pi is a microSD card, and you can get a huge performance boost by swapping over to an M.2 SATA drive. This can provide ten times the storage transfer speed.

If you have a Raspberry Pi 4, consider getting an Argon M.2 case. This neat case houses an M.2 SATA blade in the bottom part of the case, and Raspberry Pi 4 in the top (repositioning and expanding the ports).

If you have a Raspberry Pi 400, it’s possible to gain an equivalent speed boost with an M.2 SATA drive inside a USB enclosure.

Pico pinout

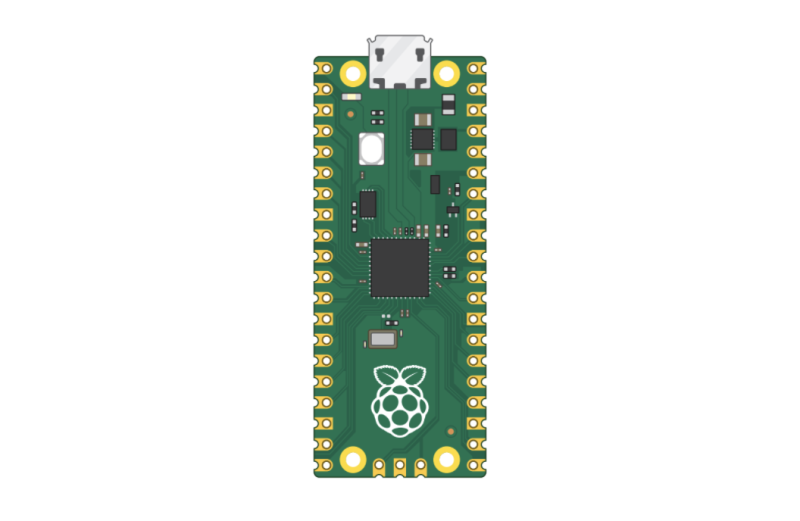

Look closely at the GPIO pins on Raspberry Pi Pico and you’ll detect that some of the pads are round, while other are square. The square solder pads are ground, making it easy to identify them. Take a look at the Raspberry Pi Pico pinout document.

Add a reset button

It’s possible to add a reset button to Raspberry Pi Zero 2 W. It has a test pad on the back marked RUN. Connect this to ground and you will reset Raspberry Pi, and this can be used with a push button to create a reset button.

You can discover the location of the RUN (and other test pins) here

It is also possible to connect a similar reset button to Raspberry Pi Pico. This makes it a lot easier to test out prototypes with the microcontroller.

Overclock Raspberry Pi

Recent updates have enabled Raspberry Pi 4 and Raspberry Pi 400 to run at a clock speed of 1.8GHz. Combined with the impressive 4GB RAM (and 8GB on some Raspberry Pi 4 models), this enables Raspberry Pi to act as an effective desktop computer.

It’s possible to take these Raspberry Pi models further, though, especially if you combine them with effective cooling. We’ve had a Raspberry Pi 4 with a cooling solution running at 2.147GHz.

Take a look at our ‘How to overclock Raspberry Pi’ tutorial.
